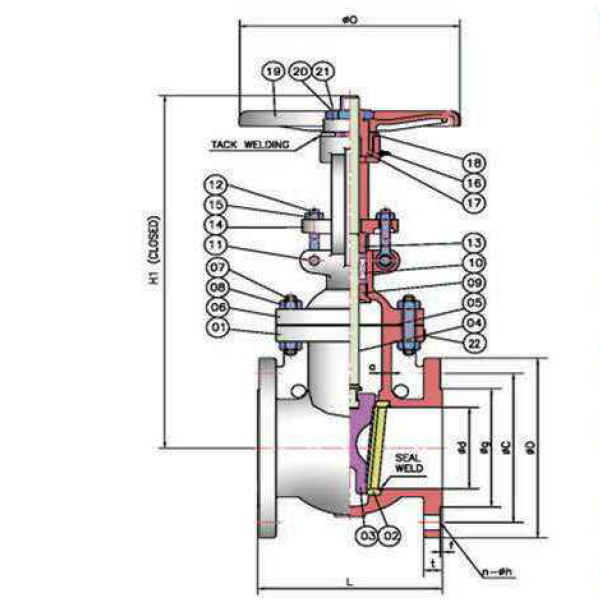

| Part and Material List | |||
|---|---|---|---|
| 01 | Body | Carbon Steel | ASTM A216 WCB |
| 02 | Body Seat Ring | Carbon Steel | ASTM A105 ST'L No. 6 Face |
| 03 | Wedge | Carbon Steel | ASTM A216 WCB 13Cr Face |
| 04 | Stem | Stainless Steel | ASTM A182 F6a |
| 05 | Gasket | Stainless Steel + Graphite | ASTM A182 316 + Graphite |
| 06 | Bonnet | Carbon Steel | ASTM A216 WCB |
| 07 | Bonnet Bolt | Carbon Steel | ASTM A193 B7 |
| 08 | Bonnet Nut | Carbon Steel | ASTM A194 2H |
| 09 | Back Seat Ring | Stainless Steel | ASTM A276 410 |
| 10 | Packing Ring | Graphite | Die Formed / Braided Graphite |
| 11 | Hinge Pin | Carbon Steel | - |
| 12 | Gland Bolt | Carbon Steel | ASTM A193 B7 |
| 13 | Packing Gland | Stainless Steel | ASTM A276 410 |
| 14 | Gland Flange | Carbon Steel | ASTM A216 WCB |
| 15 | Gland Nut | Carbon Steel | ASTM A194 2H |
| 16 | Grease Nipple | Stainless Steel | 2 1/2" Above |
| 17 | Yoke Sleeve | Ductlie Iron | ASTM A439 D2 |
| 18 | Yoke Cap | Carbon Steel | - |
| 19 | Handwheel | Ductlie Iron | - |
| 20 | Handwheel Nut | Carbon Steel | - |
| 21 | Set Screw | Steel | - |
| 22 | Nameplate | Stainless Steel | ASTM A182 F316 |
Other End connections are available on request.
Option available for materials to meet NACE MR0175 requirement

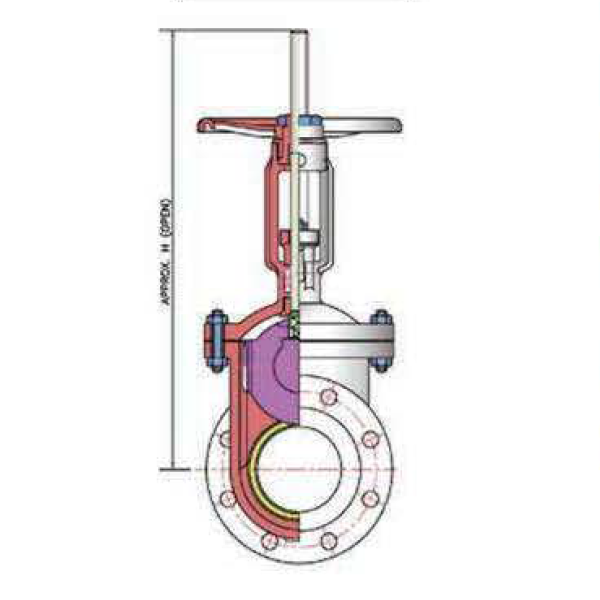

| Dimensional Data (mm)* | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" | 216.0 | 50.8 | 165.0 | 127.0 | 92.1 | 22.7 | 2.0 | 8-19.1 | 200 | 422/360 | 9.7 | 24.0 |
| 2-1/2" | 241.3 | 63.5 | 190.5 | 149.4 | 104.6 | 25.8 | 2.0 | 8-22.5 | 200 | 512/419 | 11.2 | 44.0 |
| 3" | 282.0 | 76.2 | 210.0 | 168.3 | 127.0 | 29.0 | 2.0 | 8-22.4 | 250 | 522/440 | 11.9 | 52.0 |
| 4" | 305.0 | 101.6 | 255.0 | 200.0 | 157.2 | 32.2 | 2.0 | 8-22.4 | 300 | 615/512 | 12.7 | 76.0 |
| 6" | 403.0 | 152.4 | 320.0 | 269.9 | 215.9 | 37.0 | 2.0 | 12-22.4 | 350 | 804/626 | 16.0 | 146.0 |
| 8" | 419.0 | 203.2 | 380.0 | 330.2 | 269.9 | 41.7 | 2.0 | 12-25.4 | 400 | 1002/915 | 17.5 | 218.0 |
| 10" | 457.0 | 254.0 | 445.0 | 387.4 | 323.8 | 48.1 | 2.0 | 16-28.6 | 450 | 1229/949 | 19.1 | 352.0 |
| 12" | 502.0 | 304.8 | 520.0 | 450.8 | 381.0 | 51.3 | 2.0 | 16-32.0 | 460 | 1488/1112 | 20.6 | 478.0 |
| 14" | 762.0 | 336.6 | 585.0 | 514.4 | 412.8 | 54.6 | 2.0 | 20-32.0 | 460 | 1182/1614 | 22.4 | 694.0 |
| 16" | 838.0 | 387.4 | 650.0 | 571.5 | 469.9 | 57.6 | 2.0 | 20-35.0 | 460 | 1327/1809 | 23.9 | 1080.0 |
| 18" | 914.0 | 438.2 | 710.0 | 628.6 | 533.4 | 60.8 | 2.0 | 24-35.0 | 540 | 1481/2031 | 25.4 | 1235.0 |
| 20" | 991.0 | 489.0 | 775.0 | 685.8 | 584.2 | 64.0 | 2.0 | 24-35.0 | 540 | 1619/2219 | 26.9 | 1655.0 |
| 24" | 1143.0 | 590.6 | 915.0 | 812.8 | 692.2 | 70.3 | 2.0 | 24-41.0 | 610 | 2004/2668 | 30.2 | 2320.0 |
